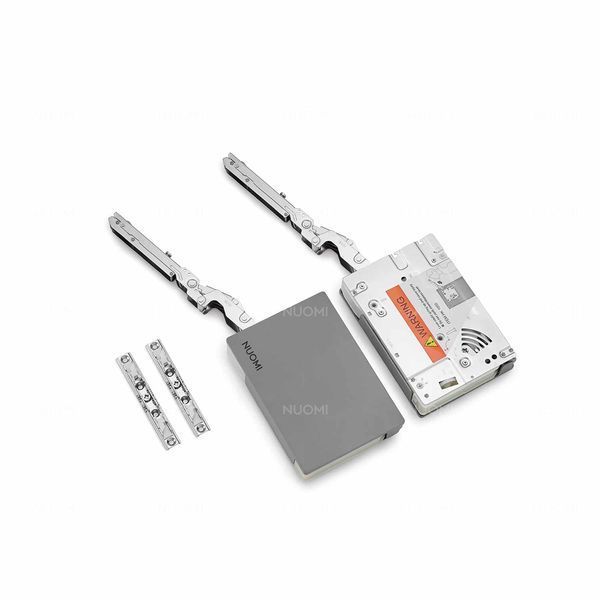

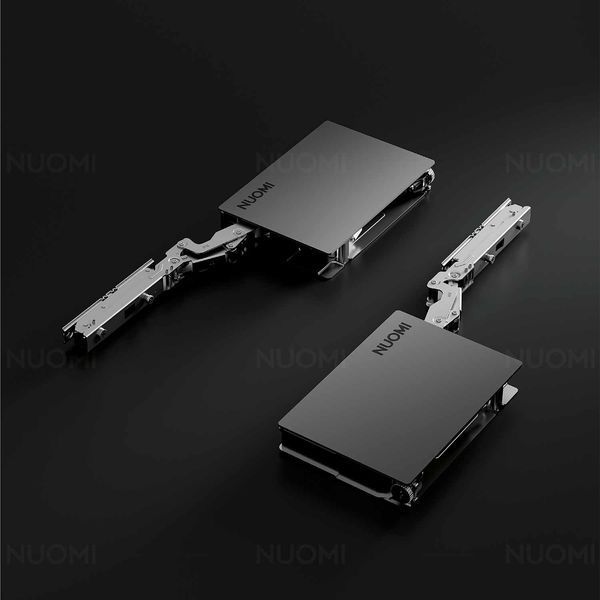

SKYLIFT Lift-Up Mechanism

Description. Flip-up lift for overhead cabinets with quick installation, soft closing and free-stop positioning.

Key features

• Quick-install base: self-positioning design—fix the screws and you’re done; easy adjustment.

• Hydraulic soft-close: copper-core oil seal for reliable sealing; smooth, silent closing. Rated for 35,000 openings.

• Free stop at any angle: hovers within 45°–107° for convenient access.

• Reinforced force arm: cold-rolled steel with adjustable strength; stable over time. Max load up to 12 kg.

• Corrosion protection: multi-layer nickel plating; 24-hour neutral salt-spray test passed.

Use cases

• Overhead wall cabinets in kitchens, living rooms, and offices; suitable for wood/MDF chipboard fronts.
